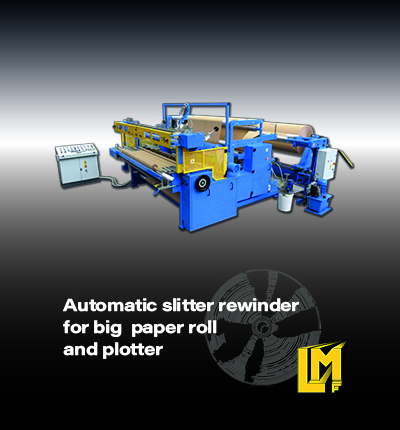

Slitter rewinder machine for paper plotter rolls and vinyls and microperforated paper

Slitter rewinder machine for paper plotter rolls and vinyls and microperforated paper

Slitter rewinding machine for paper with surface drive

Slitter rewinder machine for paper plotter rolls and vinyls and microperforated paperSlitter rewinder machine for paper plotter rolls and vinyls and microperforated paper - TBTBSlitter rewinder machine for paper plotter rolls and vinyls and microperforated paper - TRGTRG
Max unwind Ø roll1.550/2000 mm1.500/2000 mm
Max rewind Ø roll800 mm600 mm
Min rewind inside Ø core20 mm76 mm
Working width1.050 - 3400 mm1.050 - 2.500 mm
Paper grammage20 - 500 gsm20 - 400 gsm
Speed600 mt/min600mt/min
OPTIONAL
Shaftless unwind unitYesYes
Loading device for unwind rollYesYes
Web guideYesYes
Pneumatic knifeYesYes
Automatic brake controlYesYes
Unloading device for rewind rollsYesYes
Automatic tuck-inNoYes
Automatic transveral cut and gluingNoYes
Microperforating unitYesYes
